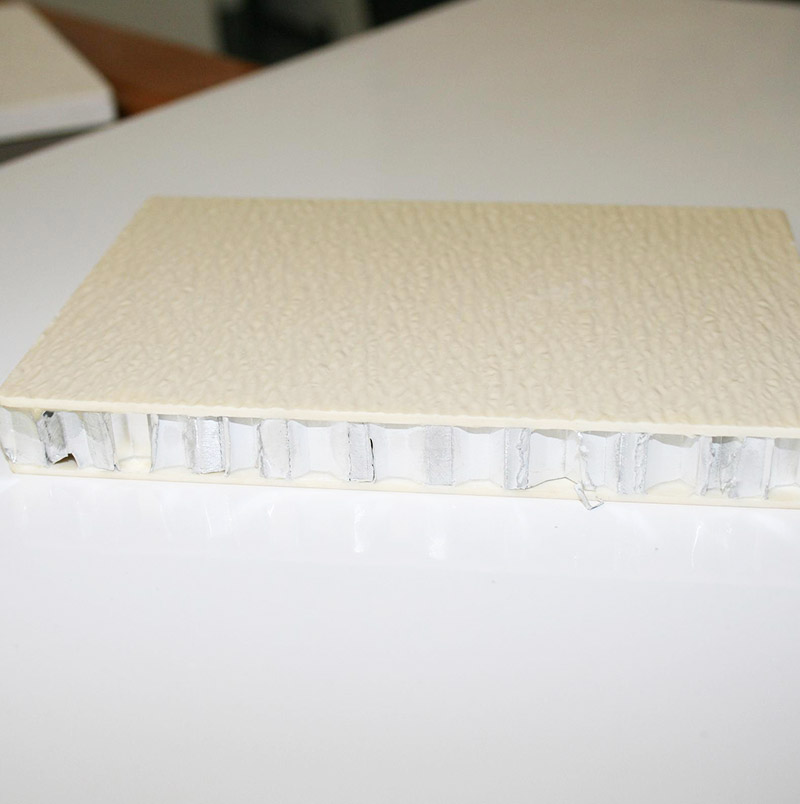

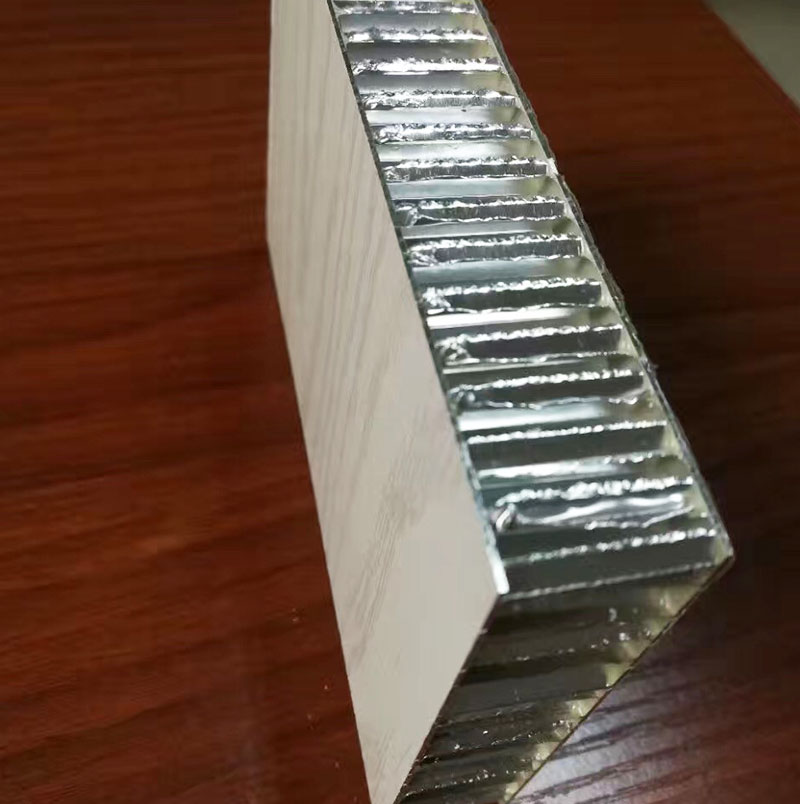

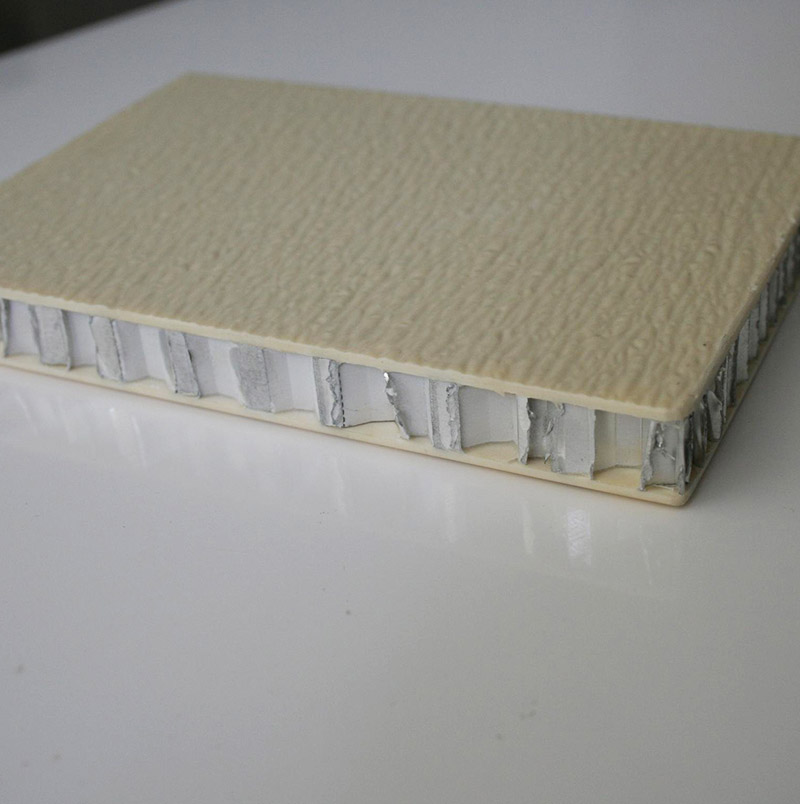

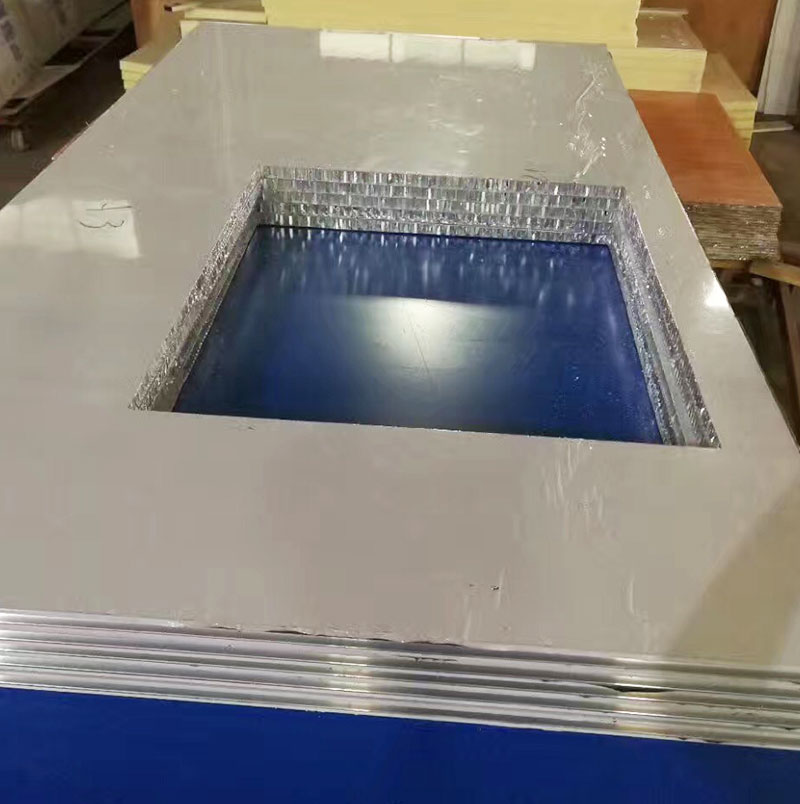

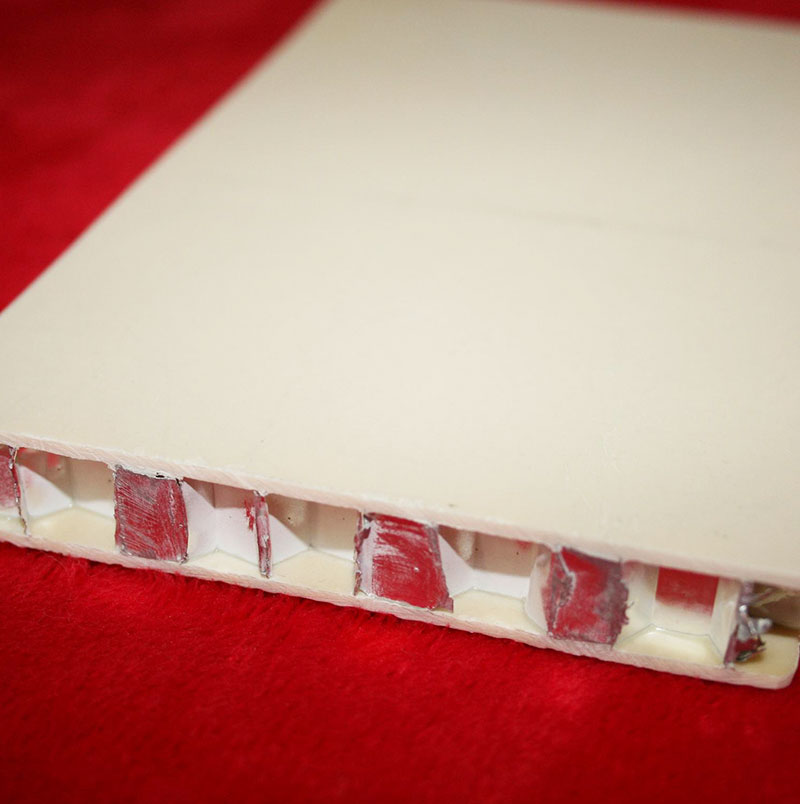

Fiberglass Aluminum honeycomb Panel

Made of FRP (fiberglass reinforced plastic) sheet as surface and aluminum honeycomb in the core. This product is widely used for dry cargo truck body building and containers.

Product Detail

Product feature:

Light weight

High strength


Sound and Vibration Dampening

Water, moisture, corrosion and chemical resistant

Environmental protection

Temperature Strength0.08
coefficient of expansion (per 100℃ change) (mm/m)1.2
Tensile strength (Mpa or N/mm2)220
0.2%proof stress (Mpa or N/mm2)130
Elongation 50,A8%
Modulus of Elasticity (N/mm2)7000
Yield Point or section modulus (cm2/m)14
Sound insulation (dB)22
Total Thickness10mm
Cell Size¼”
Top Sheet Thickness1mm
Bottom Sheet Thickness1mm
Tolerances (length, width & squareness):( ±1.6 mm)
