FRP Plywood Panel for Truck Body Door

Hengyi FRP Plywood panel are strong, smooth, aesthetic and impact resistant panels
Can be colored in the mass starting from 100m²

Product Detail

Short description

Hengyi FRP Plywood panel are strong, smooth, aesthetic and impact resistant panels
Can be colored in the mass starting from 100m²
Hengyi FRP Plywood panels boast the best possible gloss thanks to the stainless steel tables on which they are produced

Laminates:

Polyester skin reinforced with fiberglass and finished with a high gloss white pigmented 0,4mm polyester gel coat

Core:

a multi veneers plywood panel, consisting of up to 11 or 13layers which are water tightly bonded


Dimensions and weights

Maximal panel length (Lpa) = up to 12000mm
Maximal panel height (Hpa) = up to 3.000mm
Typical Panel thicknesses (Tpa) = 11mm - 14mm - 17mm - 21mm - 24mm

Tpa ThicknessWeight (per m²/+/-5%)  :
11 mm8.9  KG
14 mm10.4 KG
17 mm11.9 KG
21 mm13.4 KG
24 mm14.9 KG


Application fields

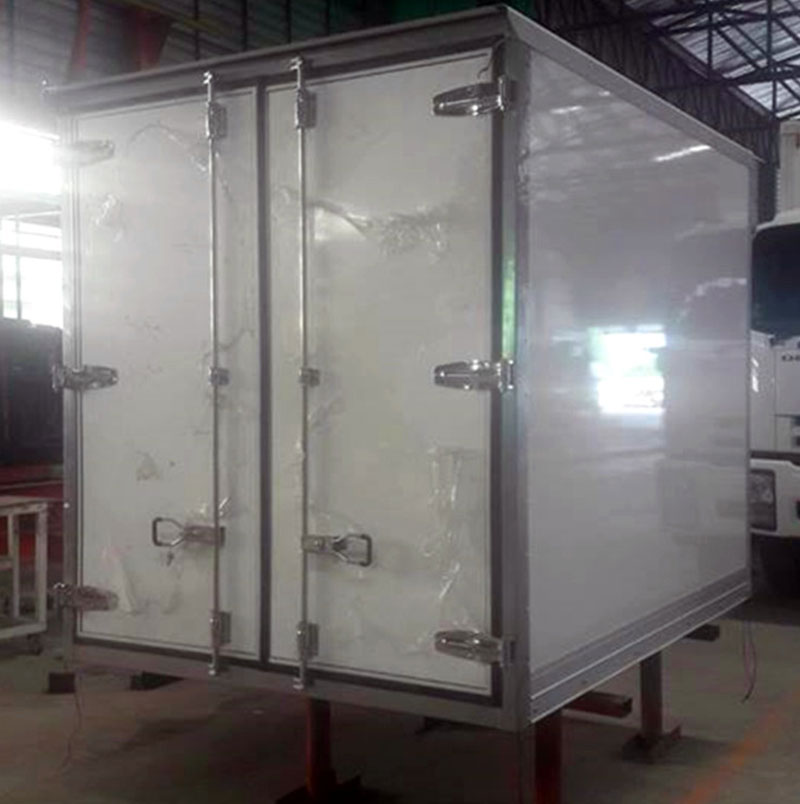

Truck Bodies

Building Material

Wall panel,partition
